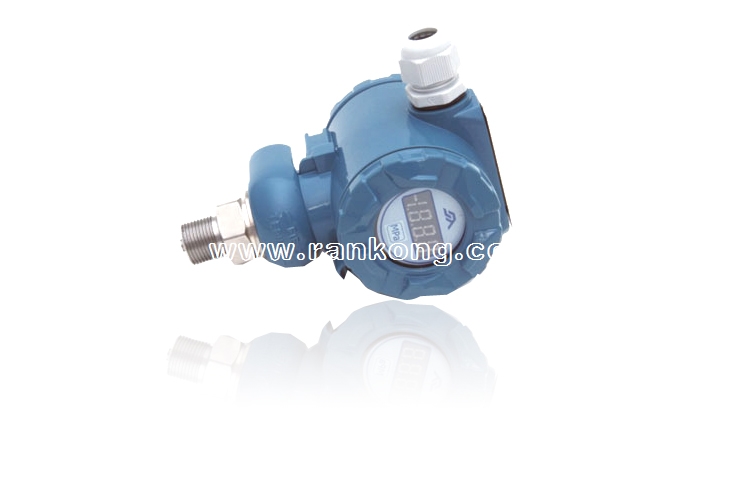

PMR400 Industrial Pressure Transmitter
Pressure range: -100kPa…0kPa~10kPa…100MPa
· Netting Available
· IP65 protection
24-hour national online service:
025-84363968- Introduction
- List
- Notice
Industrial Pressure Transmitter uses high performance, high
stability
OEM core as the pressure signal measuring
element. The sensor signal is
converted into standard signal output through
special signal processing. The
product has passed long-term aging and
stability screening with stable and
reliable performance and can be used in harsh
outdoor environment.
Meanwhile the pressure can be displayed on
site. This series of products are
widely used in industrial process control,
petroleum, chemical, metallurgical
and other industries.
| Pressure range | -0.1MPa…0～20kPa…100MPa |
| Overpressure | 1.5 times FS or 110MPa (min.value is valid） |
| Power supply | 1.5mADC |
| Signal | ≥70mVDC（0～20kPa，≥50mVDC） |
| Accuracy | ±0.1%FS（min.） ±0.25%FS（typ.） ±0.5%FS（max.） |
| Long-term stability | ±0.3%FS/year |
| Compensation temp. | 0℃～50℃ |
| Operation temp. | -10℃～80℃ |
| Storage temp. | -40℃～100℃ |
| Zero temp. coefficient | ±0.02%FS/℃（typ.） ±0.04%FS/℃（max.） |
| FS temp. coefficient | ±0.02%FS/℃（typ.） ±0.04%FS/℃（max.） |
| Housing | Stainless steel 1Cr18Ni9Ti |
| Diaphragm | Stainless steel 316L |
| O-ring | Viton |
| Cable | Polythene |
| Response time（10%～90%） | ≤1ms |
| Insulation resistance | 100MΩ，100VDC |
| Production | IP65（cable connection） |
Industrial Pressure Transmitter uses high
performance, high stability
OEM core as the pressure signal measuring
element. The sensor signal is
converted into standard signal output through
special signal processing. The
product has passed long-term aging and
stability screening with stable and
reliable performance and can be used in harsh
outdoor environment.
Meanwhile the pressure can be displayed on
site. This series of products are
widely used in industrial process control,
petroleum, chemical, metallurgical
and other
industries.
