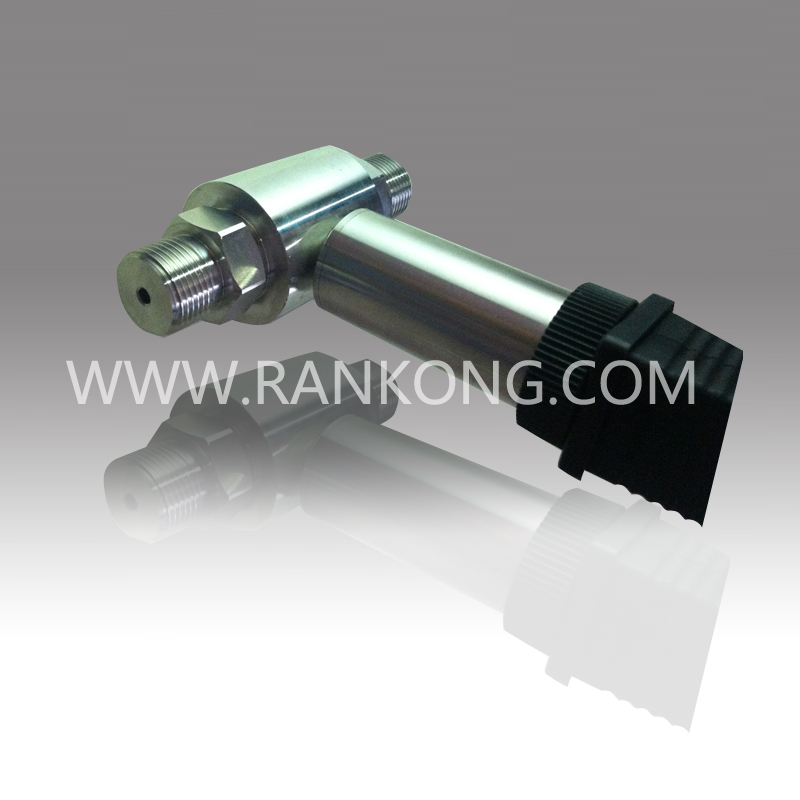

                    PMR610 Piezoresistive Differential Pressure







           PMR610 Piezoresistive Differential Pressure




          Product application: applicable to pressure difference measurement and control in oil,

chemical, power plant, urban water supply and hydrological exploration.

pressure range:0-3.5MPa;

accuracy:0.25%FS;

Output signal: 4-20m ADC









          24-hour national online service:

                    025-84363968














                   Output
Signal:4~20mA、1~5V、0~10mA、0~20mA、0~5V



Measuring
Range:0~1kPa...3.5MPa
















	Power supply: 2-wire 15～28VDC 3-wire 15～28VDC




	Electric connection:
plug connection or Φ7.2mm 7-pin cable



          Insulation resistor:
100MΩ，50VDC




		Construction
Material




		Diaphragm: stainless steel 316L




		Filled liquid: silicon oil










				Shock effect: ≤1% at 3gRMS, 30～2000Hz



          Media: liquid or
gas which is compatible with construction material




















          9
